Convert a -10 to +10 volts range measurement input signal into a bidirectional -5 to +5 volts output signal.
Products
DUALCON -10…+10V to -5…+5V Bidirectional Signal Converter
The DUALCON isolating signal converter is used to convert a minus 10 to plus 10 volts input measurement signal to a minus 5 to plus 5V voltage output signal. The DUALCON can be easily mounted to a wall using a TS35 DIN rail.
DUALCON-6 24V ac/dc Powered -10…+10V to -5…+5V Bidirectional Signal Converter
- SKU ID: s1-dualcon-0009
- Part No: II-DUALCON-6-A4000-JJ-000
- Input Type: -10…+10V
- Output Type: -5…+5V
- Supply: 16-36 Vdc or 18-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
ISOCON-3 Mains Powered -10…+10V to -5…+5V Bidirectional Signal Converter
- SKU ID: s1-dualcon-0010
- Part No: II-DUALCON-3-A4000-JJ-000
- Input Type: -10…+10V
- Output Type: -5…+5V
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table
Calculate or look up a -10 to +10 V bidirectional voltage input scale value, to find the equivalent value over the -5 to +5 V bidirectional voltage output scale.
Enter input value in V for a linear range from -10 to 10 V to calculate output value in V for a linear range from -5 to 5 V.
Request product info for a -10...10 V linear input range to -5...5 V linear output scale measurement device.

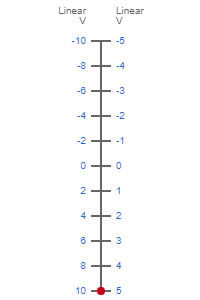

Pick a value from the -10 to 10 V linear input range column of the conversion table below, and find the corresponding value in the -5 to 5 V linear output range column.
| -10...10 V | -5...5 V | 🔗 |
|---|
