Convert a 0 to 20 milliamps range measurement input signal into a 0 to 100 millivolts output signal.
Products
ISOCON 0-20mA to 0-100mV Signal Converter
The ISOCON isolating signal converter is used to convert a 0-20mA current loop input measurement signal to a 0-100mV output signal. The ISOCON can be easily mounted to a wall using a TS35 DIN rail.
ISOCON-6 24V ac/dc Powered 0-20mA to 0-100mV Signal Converter
- SKU ID: s1-isocon-0179
- Part No: II-ISOCON-6-B000-J-000
- Input Type: 0-20mA
- Output Type: 0-100mV
- Supply: 12-36 Vdc or 12-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
ISOCON-3 Mains Powered 0-20mA to 0-100mV Signal Converter
- SKU ID: s1-isocon-0180
- Part No: II-ISOCON-3-B000-J-000
- Input Type: 0-20mA
- Output Type: 0-100mV
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table
Calculate or look up a 0 to 20 mA input scale value, to find the equivalent value over the 0 to 100 mV output scale.
Enter input value in mA for a linear range from 0 to 20 mA to calculate output value in mV for a linear range from 0 to 100 mV.
Request product info for a 0...20 mA linear input range to 0...100 mV linear output scale measurement device.

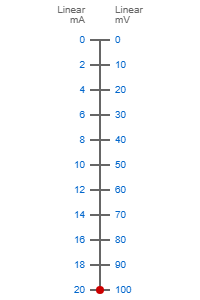

Pick a value from the 0 to 20 mA linear input range column of the conversion table below, and find the corresponding value in the 0 to 100 mV linear output range column.
| 0...20 mA | 0...100 mV | 🔗 |
|---|
