6,000psi to 4-20mA Pressure Sensor Output Signal Conversion

Convert a 0 to 6,000 pounds per square inch range input pressure to a 4 to 20 milliamp output signal.

Contents

Products

Gauge Referenced Pressure

1/4 NPT male, 6,000 psi g

This pressure sensor is installed using the 1/4 NPT male process connector, and DIN plug electrical connector. It will measure pressure over a range of 0-6,000 psi gauge and provide a 4-20mA current output signal.

SKU ID: s1-ps-l0-h6e3-u2-r1-os1-ec1-pc2
Pressure Range: 0…6,000 psi g
Output Type: 4…20mA
Electrical Connection: DIN plug
Process Connection: 1/4 NPT male

G1/4 male, 6,000 psi g

This pressure sensor is installed using the G1/4 male process connector, and DIN plug electrical connector. It will measure pressure over a range of 0-6,000 psi gauge and provide a 4-20mA current output signal.

SKU ID: s1-ps-l0-h6e3-u2-r1-os1-ec1-pc1
Pressure Range: 0…6,000 psi g
Output Type: 4…20mA
Electrical Connection: DIN plug
Process Connection: G1/4 male

Absolute Referenced Pressure

1/4 NPT male, 6,000 psi a

This pressure sensor is installed using the 1/4 NPT male process connector, and DIN plug electrical connector. It will measure pressure over a range of 0-6,000 psi absolute and provide a 4-20mA current output signal.

SKU ID: s1-ps-l0-h6e3-u2-r2-os1-ec1-pc2
Pressure Range: 0…6,000 psi a
Output Type: 4…20mA
Electrical Connection: DIN plug
Process Connection: 1/4 NPT male

G1/4 male, 6,000 psi a

This pressure sensor is installed using the G1/4 male process connector, and DIN plug electrical connector. It will measure pressure over a range of 0-6,000 psi absolute and provide a 4-20mA current output signal.

SKU ID: s1-ps-l0-h6e3-u2-r2-os1-ec1-pc1
Pressure Range: 0…6,000 psi a
Output Type: 4…20mA
Electrical Connection: DIN plug
Process Connection: G1/4 male

Conversion Tool and Table

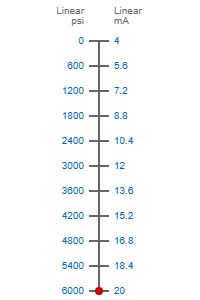

Calculate or look up a pressure between 0 and 6,000 psi, to find the equivalent value over a 4 to 20 mA output range.

Enter input value in psi for a linear range from 0 to 6000 psi to calculate output value in mA for a linear range from 4 to 20 mA.

Request product info for a 0...6000 psi linear input range to 4...20 mA linear output scale measurement device.

Pick a value from the 0 to 6000 psi linear input range column of the conversion table below, and find the corresponding value in the 4 to 20 mA linear output range column.

0...6000 psi	4...20 mA	🔗
