I’m looking for a ultrasonic sensor to measure the level of diesel tank over a range of 0 to 2 metres and 0 to 4 metres, do you have something that would fit my application?
We would suggest the Microflex D ultrasonic level transmitter which can measure over a distance of 0.3 to 8 metres.

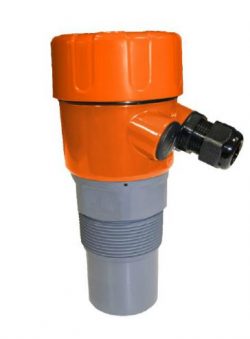

Microflex D Ultrasonic Level Transmitter
- Microflex D data sheet
- Measurement Range: 0.3 to 8 m
- Enclosure: IP67 Glass Filled Nylon
- Power Supply: 7 – 28V dc (loop powered)
- Output: 4 – 20mA / 2-wire
- Relays: None
- Hart Protocol: Yes
- Integrated LCD Display: 4 digit LCD
- Cable Entries: 2 x M20 x 1.5 entries
- Transducer Material: PVDF
- Process Connection: 2″ BSPT
- Resolution: 1mm
- Accuracy: 0.5%
- Operating Temperature: -20 to +70°C
- Operating Pressure: 3 bar max
- Automatic Temperature Compensation: Yes
- Beam Angle: 7 degrees
- Minimum Separation: 250 mm (10″)
- Weight: 1 kg
- Approvals: CE to EN50081-1, EN50082-2
