This compact stainless steel oil filled silicon piezoresistive sensor capsule based pressure transducer has a I2C (Inter-Integrated Circuit) or SPI (Serial Peripheral Interface) protocol digital interface for reading the measured pressure with ranges from 0…50 mbar (20 inWG) up to 20 bar (290 psi).
Product Parameters
- Ranges: 50 mbar up to 20 bar gauge
- Output Signals: I2C or SPI protocol digital interface
- Accuracy: 0.25%, 0.1% FS
- Electrical Connections: M12 x 1, IP65 or IP67 integral cable
- Process Connections: G1/4 male DIN 3852, G1/4 female DIN 3852, 1/4″ NPT male, 1/2″ NPT male, 7/16-20 UNF-2A male (SAE#4 J514)
- Media Compatibility: Process Connector – SS303/SS316, Diaphragm – SS316, Internal Seals – Viton/EPDM/NBR
Product Description
The Titan TPTLRd digital pressure sensor has been developed using a Stainless Steel piezo-resistive silicon sensing element housed in a robust stainless steel housing. It has the option of an integrated Cable outlet or an M12 x 1, 4-Pin connector both offering up to IP67 ingress protection.
The internal PCB incorporates a versatile microprocessor enabling a range of digital communications including i2c and SPi from a 2.7 – 5.5V dc supply.
Product Features
- Responsive stainless steel sensor
- I2c and SPi supported
- High level of temperature compensation
- Choice of mechanical connections
- Cost effective for Industrial and OEM solutions
Applications
- OEM installations
- Laboratory & Research testing
- Pneumatic testing
- Medical testing / prototyping
- Data loggers
- Aerospace test and research
- Automotive component testing
- Academic research

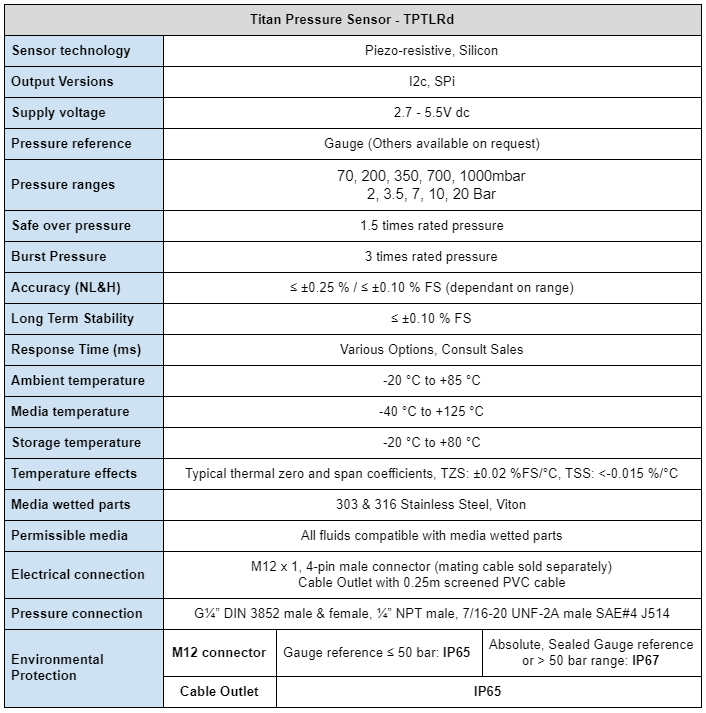

Product Specification

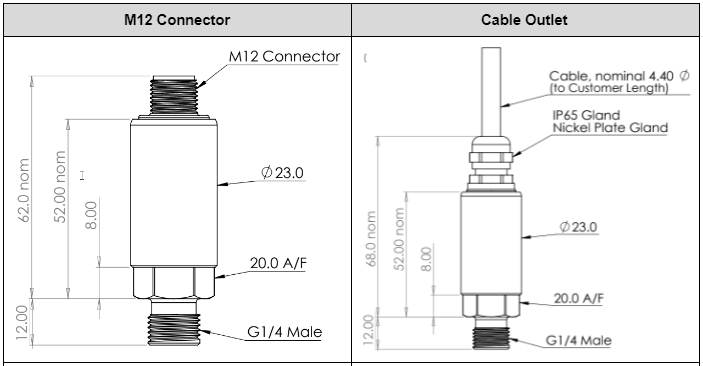

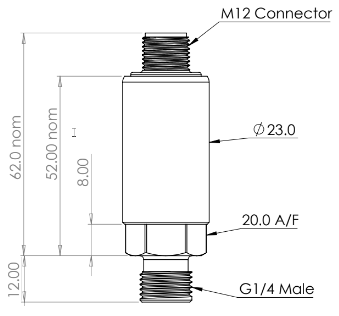

Dimensional Drawings
Wiring Configuration

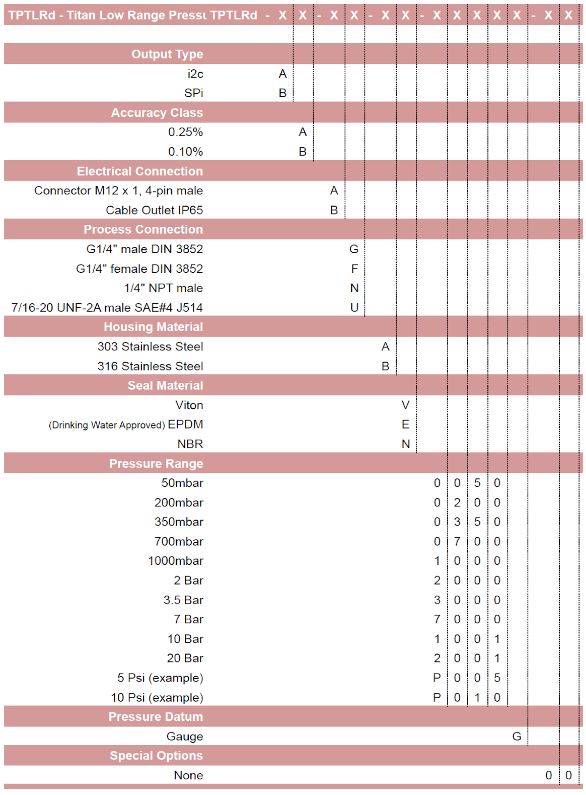

Part Numbering System
Related Documents
Specification data sheet
