Convert a -5 to +5 volts range measurement input signal into a 4 to 20 milliamps loop output signal.
Products
ISOCON -5…+5V to 4…20mA Signal Converter
The ISOCON isolating signal converter is used to convert a -5…+5V input measurement signal to a 4…20mA current loop output signal. The ISOCON can be easily mounted to a wall using a TS35 DIN rail.
ISOCON-6 24V ac/dc Powered -5…+5V to 4…20mA Signal Converter
- SKU ID: s1-isocon-0085
- New Part No: II-ISOCON-6-J000-A-000
- Input Type: -5…+5V
- Output Type: 4…20mA
- Supply: 12-36 Vdc or 12-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
ISOCON-3 Mains Powered -5…+5V to 4…20mA Signal Converter
- SKU ID: s1-isocon-0086
- New Part No: II-ISOCON-3-J000-A-000
- Input Type: -5…+5V
- Output Type: 4…20mA
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table

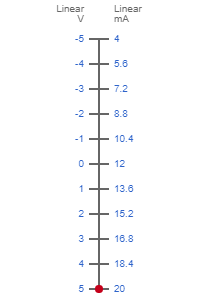

Calculate or look up a -5…+5 V input scale value, to find the equivalent value over the 4 to 20 mA output scale.
Enter input value in V for a linear range from -5 to 5 V to calculate output value in mA for a linear range from 4 to 20 mA.
Request product info for a -5...5 V linear input range to 4...20 mA linear output scale measurement device.
Pick a value from the -5 to 5 V linear input range column of the conversion table below, and find the corresponding value in the 4 to 20 mA linear output range column.
| -5...5 V | 4...20 mA | 🔗 |
|---|
