4…20mA to -5…+5V Bidirectional Signal Conversion

Convert a 4 to 20 milliamps range measurement input signal into a bidirectional -5 to +5 volts output signal.

4...20mA to -5...+5V Bidirectional Signal Conversion

Contents

  • Products
    • DUALCON 4…20mA to -5…+5V Bidirectional Signal Converter
      • DUALCON-6 24V ac/dc Powered 4…20mA to -5…+5V Bidirectional Signal Converter
      • ISOCON-3 Mains Powered 4…20mA to -5…+5V Bidirectional Signal Converter
  • Conversion Tool and Table

Products

DUALCON 4…20mA to -5…+5V Bidirectional Signal Converter

DUALCON 4...20mA to -5...+5V Bidirectional Signal ConverterThe DUALCON isolating signal converter is used to convert a 4 to 20mA current loop input measurement signal to a minus 5 to plus 5V voltage output signal. The DUALCON can be easily mounted to a wall using a TS35 DIN rail.

DUALCON-6 24V ac/dc Powered 4…20mA to -5…+5V Bidirectional Signal Converter

  • SKU ID: s1-dualcon-0005
  • Part No: II-DUALCON-6-A000-JJ-000
  • Input Type: 4…20mA
  • Output Type: -5…+5V
  • Supply: 12-36 Vdc or 12-32Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

ISOCON-3 Mains Powered 4…20mA to -5…+5V Bidirectional Signal Converter

  • SKU ID: s1-dualcon-0006
  • Part No: II-DUALCON-3-A000-JJ-000
  • Input Type: 4…20mA
  • Output Type: -5…+5V
  • Supply: 85-260Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

Conversion Tool and Table

Calculate or look up a 4 to 20 mA input scale value, to find the equivalent value over the -5 to +5 V bidirectional voltage output scale.

Enter input value in mA for a linear range from 4 to 20 mA to calculate output value in V for a linear range from -5 to 5 V.

Input mA
Output V
Sorry, a graphic could not be displayed here, because your browser does not support HTML5 Canvas.

Request product info for a 4...20 mA linear input range to -5...5 V linear output scale measurement device.

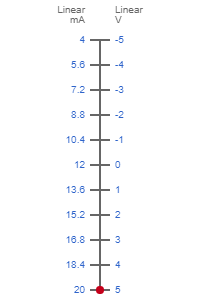

Pick a value from the 4 to 20 mA linear input range column of the conversion table below, and find the corresponding value in the -5 to 5 V linear output range column.

4...20 mA -5...5 V 🔗
