Convert a 0 to 70 millivolts range measurement input signal into a 4 to 20 milliamps loop output signal.
Products
STRAIN 0-70mV to 4-20mA Signal Converter
The STRAIN millivolt input signal converter is used to convert a 0-70mV input measurement signal to a 4-20mA current loop output signal. The STRAIN can be easily mounted to a wall using a TS35 DIN rail.
STRAIN-6 24V ac/dc Powered 0-70mV to 4-20mA Signal Converter
- SKU ID: s1-strain-0030
- Part No: II-STRAIN-6-AJ-A-000
- Input Excitation: 10Vdc
- Input Type: 0-70mV
- Output Type: 4-20mA
- Supply: 12-36 Vdc or 12-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
STRAIN-3 Mains Powered 0-70mV to 4-20mA Signal Converter
- SKU ID: s1-strain-0031
- Part No: II-STRAIN-3-AJ-A-000
- Input Excitation: 10Vdc
- Input Type: 0-70mV
- Output Type: 4-20mA
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table
Calculate or look up a 0 to 70 mV input scale value, to find the equivalent value over the 4 to 20 mA output scale.
Enter input value in mV for a linear range from 0 to 70 mV to calculate output value in mA for a linear range from 4 to 20 mA.
Request product info for a 0...70 mV linear input range to 4...20 mA linear output scale measurement device.

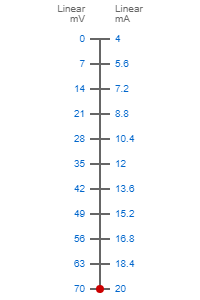

Pick a value from the 0 to 70 mV linear input range column of the conversion table below, and find the corresponding value in the 4 to 20 mA linear output range column.
| 0...70 mV | 4...20 mA | 🔗 |
|---|
