Convert a 0 to 30 millivolts range measurement input signal into a 0 to 10 volts output signal.
Products
STRAIN 0-30mV to 0-10V Signal Converter
The STRAIN millivolt input signal converter is used to convert a 0-30mV input measurement signal to a 0-10V voltage output signal. The STRAIN can be easily mounted to a wall using a TS35 DIN rail.
STRAIN-6 24V ac/dc Powered 0-30mV to 0-10V Signal Converter
- SKU ID: s1-strain-0015
- Part No: II-STRAIN-6-AB-G-000
- Input Excitation: 10Vdc
- Input Type: 0-30mV
- Output Type: 0-10V
- Supply: 12-36 Vdc or 12-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
STRAIN-3 Mains Powered 0-30mV to 0-10V Signal Converter
- SKU ID: s1-strain-0016
- Part No: II-STRAIN-3-AB-G-000
- Input Excitation: 10Vdc
- Input Type: 0-30mV
- Output Type: 0-10V
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table
Calculate or look up a 0 to 30 mV input scale value, to find the equivalent value over the 0 to 10 V output scale.
Enter input value in mV for a linear range from 0 to 30 mV to calculate output value in V for a linear range from 0 to 10 V.
Request product info for a 0...30 mV linear input range to 0...10 V linear output scale measurement device.

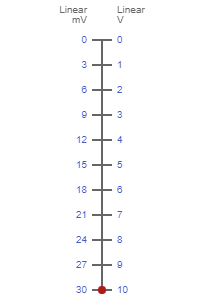

Pick a value from the 0 to 30 mV linear input range column of the conversion table below, and find the corresponding value in the 0 to 10 V linear output range column.
| 0...30 mV | 0...10 V | 🔗 |
|---|
