0-20mV to 0-10V Signal Conversion

Convert a 0 to 20 millivolts range measurement input signal into a 0 to 10 volts output signal.

0-20mV to 0-10V Signal Conversion

Contents

  • Products
    • STRAIN 0-20mV to 0-10V Signal Converter
      • STRAIN-6 24V ac/dc Powered 0-20mV to 0-10V Signal Converter
      • STRAIN-3 Mains Powered 0-20mV to 0-10V Signal Converter
  • Conversion Tool and Table

Products

STRAIN 0-20mV to 0-10V Signal Converter

STRAIN 0-20mV to 0-10V Signal ConverterThe STRAIN millivolt input signal converter is used to convert a 0-20mV input measurement signal to a 0-10V voltage output signal. The STRAIN can be easily mounted to a wall using a TS35 DIN rail.

STRAIN-6 24V ac/dc Powered 0-20mV to 0-10V Signal Converter

  • SKU ID: s1-strain-0019
  • Part No: II-STRAIN-6-AA-G-000
  • Input Excitation: 10Vdc
  • Input Type: 0-20mV
  • Output Type: 0-10V
  • Supply: 12-36 Vdc or 12-32Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

STRAIN-3 Mains Powered 0-20mV to 0-10V Signal Converter

  • SKU ID: s1-strain-0020
  • Part No: II-STRAIN-3-AA-G-000
  • Input Excitation: 10Vdc
  • Input Type: 0-20mV
  • Output Type: 0-10V
  • Supply: 85-260Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

Conversion Tool and Table

Calculate or look up a 0 to 20 mV input scale value, to find the equivalent value over the 0 to 10 V output scale.

Enter input value in mV for a linear range from 0 to 20 mV to calculate output value in V for a linear range from 0 to 10 V.

Input mV
Output V
Sorry, a graphic could not be displayed here, because your browser does not support HTML5 Canvas.

Request product info for a 0...20 mV linear input range to 0...10 V linear output scale measurement device.

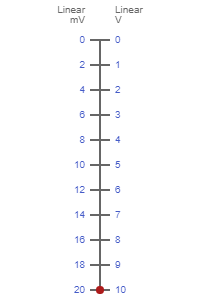

Pick a value from the 0 to 20 mV linear input range column of the conversion table below, and find the corresponding value in the 0 to 10 V linear output range column.

0...20 mV 0...10 V 🔗
