Convert a 0 to 2.5 volt range measurement input signal into a 4 to 20 milliamps loop output signal.
Products
ISOCON 0-2.5V to 4-20mA Signal Converter
The ISOCON isolating signal converter is used to convert a 0-2.5V input measurement signal to a 4-20mA current loop output signal. The ISOCON can be easily mounted to a wall using a TS35 DIN rail.
ISOCON-6 24V ac/dc Powered 0-2.5V to 4-20mA Signal Converter
- SKU ID: s1-isocon-0139
- Part No: II-ISOCON-6-J000-A-000
- Input Type: 0-2.5V
- Output Type: 4-20mA
- Supply: 12-36 Vdc or 12-32Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
ISOCON-3 Mains Powered 0-2.5V to 4-20mA Signal Converter
- SKU ID: s1-isocon-0140
- Part No: II-ISOCON-3-J000-A-000
- Input Type: 0-2.5V
- Output Type: 4-20mA
- Supply: 85-260Vac
- Isolation: Full 3-Port
- Installation: DIN Rail TS35
- Electrical Connections: Screw clamp with pressure plate
Conversion Tool and Table
Calculate or look up a 0 to 2.5 V input scale value, to find the equivalent value over the 4 to 20 mA output scale.
Enter input value in V for a linear range from 0 to 2.5 V to calculate output value in mA for a linear range from 4 to 20 mA.
Request product info for a 0...2.5 V linear input range to 4...20 mA linear output scale measurement device.

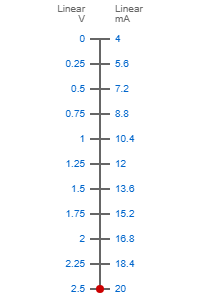

Pick a value from the 0 to 2.5 V linear input range column of the conversion table below, and find the corresponding value in the 4 to 20 mA linear output range column.
0...2.5 V | 4...20 mA | 🔗 |
---|
