Wet/wet dp sensor with a 0 to 1 bar differential pressure measuring range and a 4-20 mA output signal. This sensor can withstand a 20 bar line pressure on one side only.
- Differential Pressure Range: 1.0 bar with 20 bar line pressure
- Output Signal: 4-20mA, 2 wire

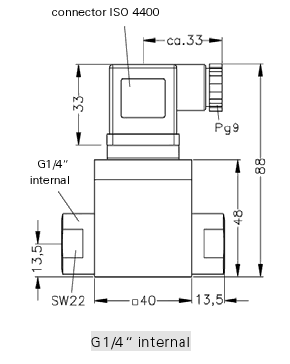

- Electrical Connection: DIN plug and socket (standard)
- Pressure Connection: G1/4 female
