Titan TPTLR Low Range Millivolt Output Pressure Transducer

This compact stainless steel oil filled silicon piezoresistive sensor capsule based pressure transducer provides a millivolt strain gauge bridge output for ranges from 0…50 mbar (20 inWG) up to 20 bar (290 psi).

Product Parameters

• Ranges: 50 mbar up to 20 bar gauge
• Output Signals: raw mV/V, 2mV/V, 3mV/V, 10mV/V, 20mV/V
• Accuracy: 0.25%, 0.1% FS
• Electrical Connections: M12 x 1, IP65 or IP67 integral cable, mini DIN plug, mil spec connector, packard metri-pak 150 series connector
• Process Connections: G1/4 male DIN 3852, G1/4 female DIN 3852, 1/4″ NPT male, 1/2″ NPT male, 7/16-20 UNF-2A male (SAE#4 J514)
• Media Compatibility: Process Connector – SS303/SS316, Diaphragm – SS316, Internal Seals – Viton/EPDM/NBR

Product Description

The Titan TPTLR low range millivolt output pressure transducer has been developed using a Stainless Steel piezo-resistive silicon sensing element housed in a robust stainless steel housing. It has the option of an integrated Cable outlet or an M12 x 1, 4-Pin connector both offering up to IP67 ingress protection and also standard connectors such as mini DIN & large DIN 43650 right angled connectors. We also have the option of an integrated MIL-C spec or customer specific connectors.

The internal PCB uses passive components to ensure the low power consumption is maintained, ideal for battery powered applications. Being passive also makes it suitable for applications that require a fast dynamic measurement of pressure. Outputs include raw mV/V, rationalised 2mV/V, 3mV/V or 10mV/V and 20mV/V which can be powered from 2 – 30V dc supply.

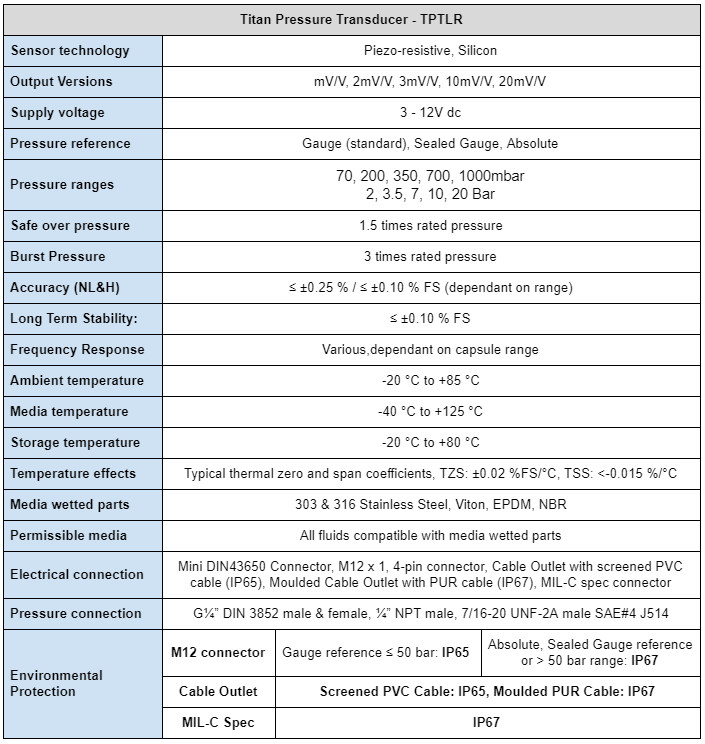

Product Specification

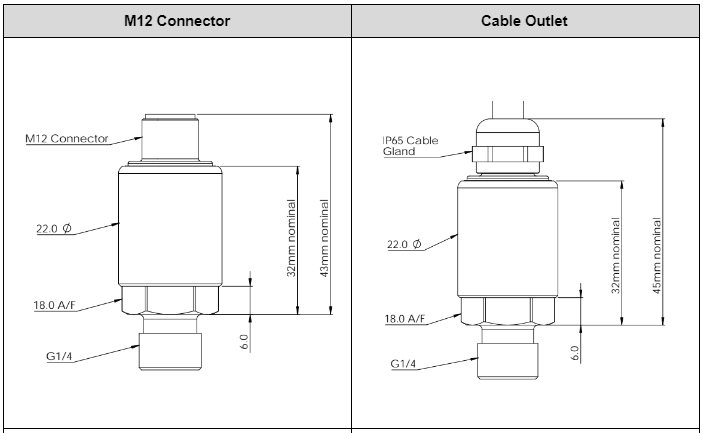

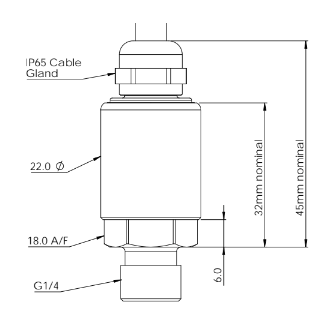

Dimensional Drawings

Wiring Configuration

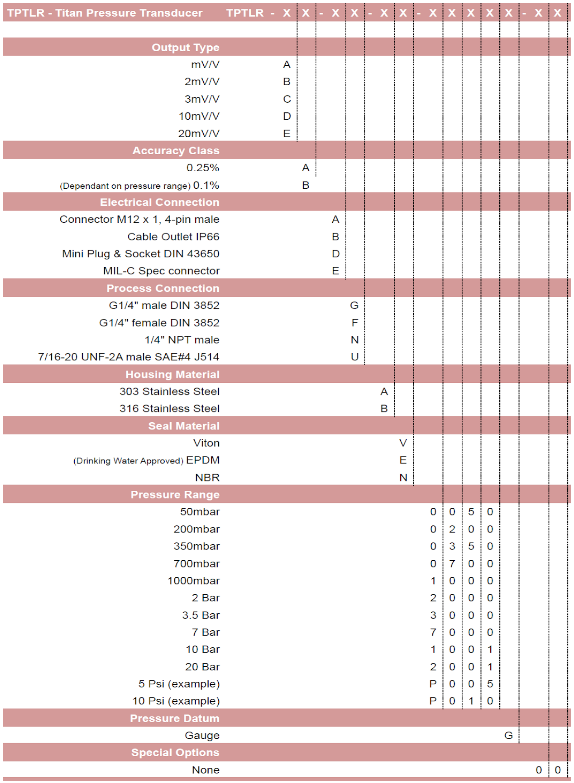

Part Numbering System

Related Documents

Specification data sheet

• TPTLR pdf product data sheet
• Wiring configuration sheet
