This compact ceramic sensing diaphragm pressure sensor has a I2C (Inter-Integrated Circuit) or SPI (Serial Peripheral Interface) protocol digital interface for reading the measured pressure with ranges from 0…0.5 bar (7.25 psi) up to 600 bar ( 8700 psi).
Product Parameters
- Ranges: 0.5 up to 600 bar gauge or absolute
- Output Signals: I2C or SPI protocol digital interface
- Accuracy: 0.35%, 0.25%, 0.1% FS
- Electrical Connections: M12 x 1, IP65 or IP67 integral cable
- Process Connections: G1/4 male DIN 3852, G1/4 female DIN 3852, 1/4″ NPT male, 1/2″ NPT male, 7/16-20 UNF-2A male (SAE#4 J514)
- Media Compatibility: Process Connector – SS303/SS316/PVDF, Diaphragm – Ceramic, Internal Seals – Viton/EPDM/NBR/FFKM
Product Description
The Titan TPTd digital pressure transducer has been developed using a Ceramic (96% Aluminium Oxide Al2O3) piezo-resistive sensing element housed in a robust stainless steel housing. It has the option of an integrated Cable outlet or an M12 x 1, 4-Pin connector both offering up to IP67 ingress protection.
The internal PCB incorporates a versatile microprocessor enabling a range of digital communications including I2C and SPI from a 2.7 – 5.5V dc supply.
Product Features
- Ceramic sensor, high corrosion resistance
- I2C and SPI supported
- Low power consumption
- High level of temperature compensation
- Choice of mechanical connections
- Cost effective for Industrial and OEM solutions
Applications
- OEM installations
- Laboratory & Research testing
- Hydraulic & Pneumatic testing
- Medical testing / prototyping
- Pressure surge detection
- Data loggers
- Aerospace test and research
- Automotive component testing
- Academic research

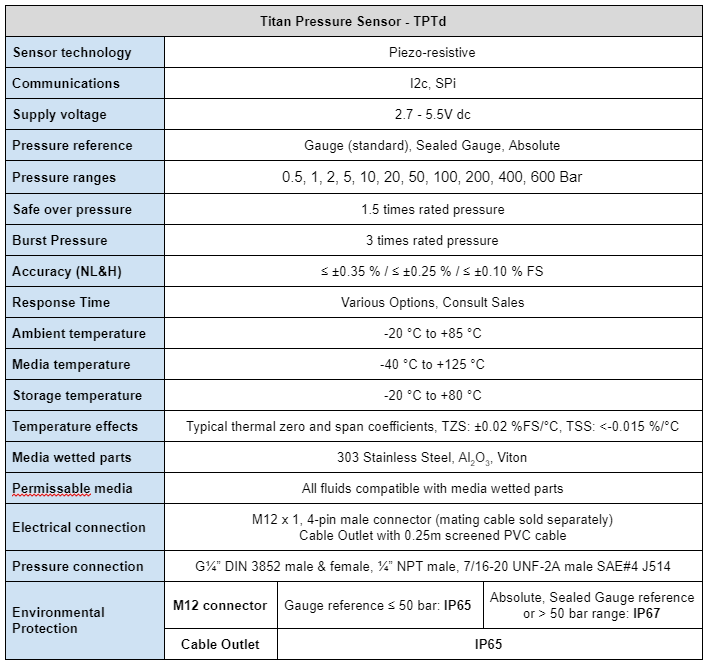

Product Specification

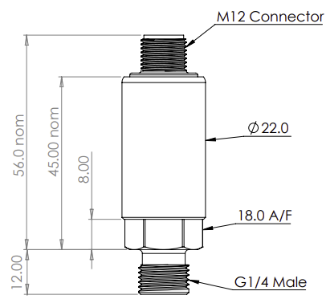

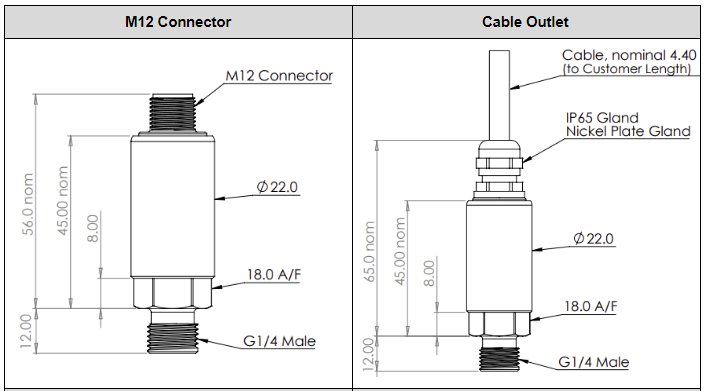

Dimensional Drawings
Wiring Configuration

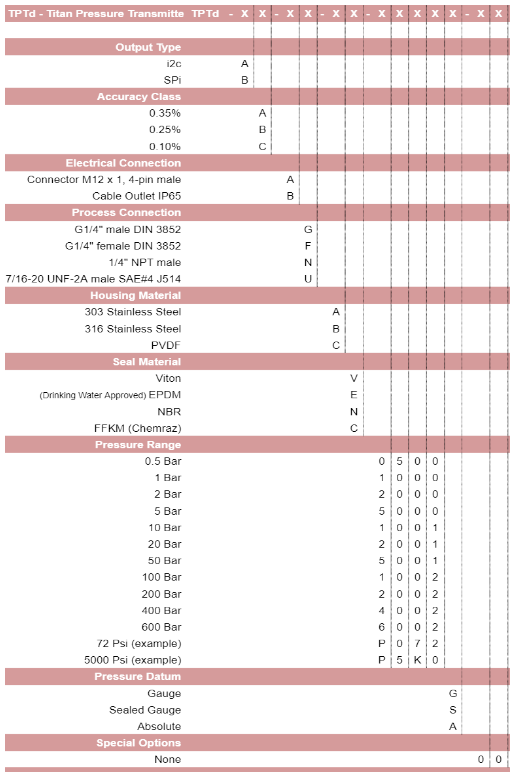

Part Numbering System
Product Help
Ultra pure water in PVC pipe
I need a pressure transmitter with the following specs that can be fitted to a PVC pipeline to measure ultra pure water: pressure range: 0 – 2 Bar, pressure datum: gauge, output type: i2c, power Supply: 5Vdc?
We would suggest the following TPTd configuration:
- SKU ID: s1-tptd-0001
- Part No: TPtd-AA-AG-CE-2000G-00
- Pressure Range: 0 – 2 Bar
- Pressure Datum: Gauge
- Output Type: i2c
- Power Supply: 2.7 – 5.5V dc
- Accuracy Class: 0.35% FS
- Electrical Connection: Connector M12 x 1, 4-pin male
- Process Connection: G1/4″ male DIN 3852
- Housing Material: PVDF
- Seal Material: EPDM
- Special Options: None
