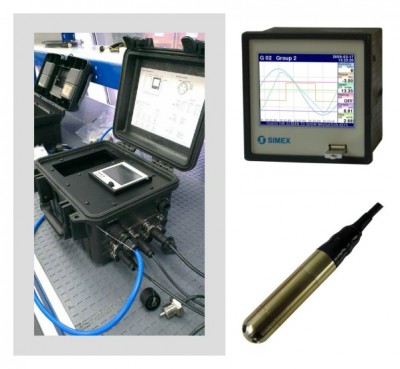

Portable seawater level logger instrumentation kit for measuring, displaying and logging sea water levels to a maximum depth of 10 metres.
SWL Seawater Level Sensor
- Part No: SWL-G1000-5A4-AAV-010-000
- Pressure Datum: Gauge
- Pressure Range: 0 – 10mW
- Output: 4 – 20mA / 2-wire
- Accuracy (Non-linearity): <±0.25% / FS (BFSL)
- Accuracy (Thermal Zero Shift): <±0.04% / FS / °C
- Electrical Connection: Vented PUR Cable (Price per mtr)
- Housing Material: Marine Bronze CA104
- Seal Material: Viton
- Cable Length (enter in mtrs): 10 metre PUR
- Special Code: No Special Requirements
- Process Connection: Self flushing nose cone (G 1/4″ when removed)
- Diaphragm Material: Aluminium Oxide 96% (Ceramic Al2O3)
- Media Temperature: -20 to +60°C non freezing
- Storage Temperature: -20°C to +70°C
- Compensated Temperature: 20°C ± 25°C
- Supply Voltage: 9 – 32 V dc
P130 Portable Instrumentation Case
- Part No: P130/4/4 – portable case
- Description: including 8 input/output connectors
- Description: Excludes CMC-99
- Description: Includes Power and Ethernet Connector
MultiCon CMC99 Data Logger
- CMC-99-3-3-UI4-E-E-0B1
- Slot P – Power Supply: 19V…50V DC / 16V…35V AC
- Slot D – Interface Port: ETU Module (1x USB Host, 1x Ethernet 10MB)
- Slot C: 4 x voltage input + 4 x current input
- Slot B: Empty
- Slot A: Empty
- Extra Options: Front USB Host (IP40)
- Display: 3.5″ Graphic TFT, 16-bit colour touchscreen
- Transducer Power Supply: 24 V DC±5% / 200 mA max.
- Communications interface: RS-485 (Modbus RTU), 1 x USB Host, USB Device
- Operating Temperature: 0 to +50°C
- Case Style: Panel Mount
- Case Dimension: 96 x 96 x 100mm
- Panel cut-out dimensions: 90.50 x 90.50mm
- Installation Depth: 102mm min.
- Internal Memory: Internal 1.5 GB, over 50 days (250,000,000 samples)
- Digital inputs: 1 x 24V DC, optocoupled
- Power Consumption: 15 VA typical; 20 VA max
