I’m looking for a sensor and panel mount digital indicator for measuring the overload pressure in a mechanical press. The range required is 1000 bar and an output of 4-20mA for the sensor so that the sensor can be located 50 metres away from the indicator.

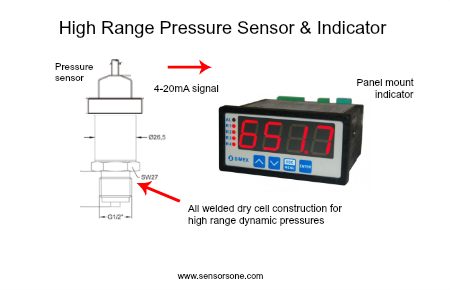

The DMP334 is high range pressure sensor with an all welded stainless steel diaphragm with no oil fill, which is ideal for measuring dynamic hydraulic pressures generated by a mechanical press. The SRP94 is a panel indicator which has a high visibility red LED display and a 4-20mA input for sensors positioned a long way from the instrument panel.
Contents
DMP334 Hydraulic Pressure Sensor
- Pressure Range: 1000 bar g
- Output Signal: 4-20mA (2 wire)
- Electrical Connection: DIN43650A plug IP65 with 50 m of cable
- Process Connection: G1/2 male EN837
SRP94 Panel Mount Digital Indicator
- Input: Milliamps (mA) or Volts (V)
- Outputs: No outputs (00)
- Power Supply Input: 24V ac/dc (3)
