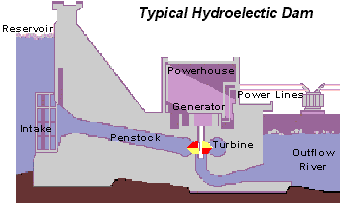

We are looking for a solution to measure water level in a hydropower reservoir. We would need a submersible hydrostatic level transmitter with a range of 0 – 25 metres for installing outdoors and a digital indicator for installing indoors, 5 metres away from the level transmitter.

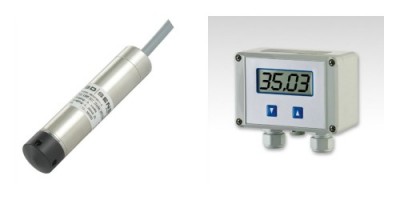

We would suggest the LMP307 for measuring the reservoir level and connecting this to a PA440 for displaying the level indoors. Both devices can be powered by a single DC voltage source of 8 to 32 volts.
Contents
LMP307 Submersible Hydrostatic Level Transmitter
- Part No: 451-2501-1-1-1-1-3-1-040-000
- Sensor Type: Level only
- Level Sensing Range: 0 to 25
- Units: mH2O
- Reference Type: Gauge / Vented (atm to +P)
- Output Signal: 4-20mA, 2 wire
- Accuracy: 0.35%FS above (11-12bit res)
- Installation Type: Submersible probe with removable nose cone
- Housing Material: Stainless Steel 316L
- Diaphragm Material: Stainless Steel 316L
- Media Exposed Seals: FKM
- Cable Type: PVC (70degC max)
- Cable Length: 40
- Cable Length Units: Metres (m)
PA440 Digital Indicator
- Part No: 851-1-0-3-1-C-G-000
- Analogue Output: 4-20mA (2 wire)
- Display: LCD
- Housing Material: Plastic ABS
- Switch Contacts: 0
- Electrical Connection: Cable gland M16x1.5
- Engineering Unit Label: mH2O
