1013 to 1400 mbar barometric pressure transmitter & readout

Request Price

I need a barometric pressure transmitter that can measure ambient air pressure in a chamber and provide a 4-20 mA output signal. The normal operating range is a pressure just above atmospheric pressure around 1013 to 1400 mbar. The application is to provide a feedback of chamber pressure in order to control blower speed to regulate the pressure in the chamber. Apart from measurement, does the DMP 331 i also have a digital display of pressure?

Yes the DMP331i can be scaled to output a 4-20mA signal over a the range you are interested.  It is possible to supply the PA430 plug-on digital display which connects between the fixed plug and mating socket of the DIN plug connector.

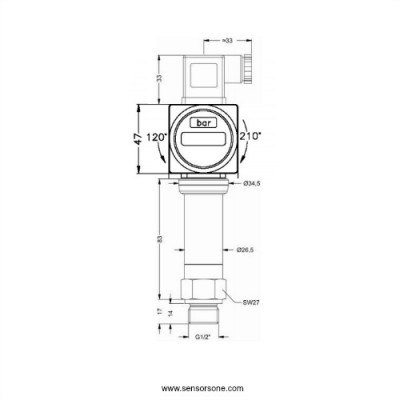

Barometric pressure transmitter & readout



Contents

  • DMP331i Barometric Scaled Pressure Transmitter
  • PA430 Add-On LED Display

DMP331i Barometric Scaled Pressure Transmitter

  • Pressure Range: 1013 to 1400 mbar abs
  • Output Signal: 4-20mA (2 wire)
  • Electrical Connection: DIN43650A plug IP65
  • Pressure Connection: G1/2 DIN3852
  • Seals: FKM

PA430 Add-On LED Display

  • Electrical Connection (Output / Input): DIN43650A plug IP65 / DIN43650A plug IP65
  • Output Signal: 4-20mA (2 wire)
  • Switch Output: None
  • Units Label: Fitted by user
