The 912 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 60psi (4bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 Pa (0.001 mbar). The 912 is a very stable low pressure calibrator. It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change. Most pumps make use of a check valve (non-returning valve) and are not well insulated which will cause large fluctuations in pressure with a change in ambient temperature or when the unit is touched. The 912 does not use a check valve and is remarkably stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 912 is an ideal comparison test pump for low pressure application.
Features
Portable
Only 6.2 lb
Adjustment resolution
0.1Pa (0.001 mbar) High-quality screw press for fine pressure adjustment
Good stability
Isothermal chamber: the pressure chamber is insulated to reduce the influence of environmental temperature changes.
Specially designed bellows reduces leakage to guarantee excellent stability.
Shut-off valve closes the air in the isothermal chamber during calibration
Durable and minimal maintenance
Built-in gas-liquid isolator protects the pump from moisture and dirt
Easy to use
Pressure can be set and adjusted precisely and quickly through a simple turn of the handle.
Handtight connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
Applications
The Additel 912 Low Pressure Test Pump is designed to generate pressure from 95% vacuum to 60 psi (4.bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.
Specifications
Media
- Air
Generated Pressure Range
- 95% vacuum to 60 psi (0.4 bar) positive pressure
Pressure Resolution
- 0.1 Pa (0.001 mbar)
Material
- Ram/Adapters: Stainless steel
- Body: Stainless steel/Aluminum
- Seals: Buna-N
Connection
Hand-tight connectors for both test gauge and reference gauge
- Test Gauge connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
- Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions
- Height: 5.7” (145 mm)
- Base: 9.65” (245 mm) x 6.50” (165 mm)
Weight
- 3.5 lb (1.6 kg)

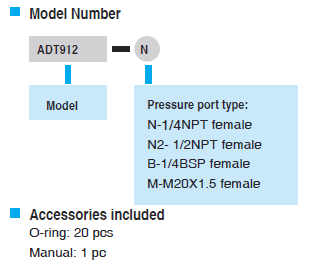

Part Numbers
Accessories
Component Functions
Pneumatic Layout
