35X HTC High Temperature Digital Pressure Sensor (< 300 degC)

Select Options ⇒ Request Price
PDF

35X HTC High Temperature Pressure Sensor

The 35X HTC high temperature digital pressure sensor is suited for media temperatures up to 300 °C. The pressure, acting onto the flush diaphragm, is transferred over an oil-filled capillary onto the silicon piezoresistive measuring cell. The capillary has the function of a cooling spiral, allowing media with temperatures up to 300°C to make contact with the isolation diaphragm.

Contents

  • Specifications
    • Pressure Ranges
    • Output Signal & Accuracy
    • Other Specification Details
  • Dimensional Drawing
  • Wiring Configuration
  • Product Help
    • Standard pressure ranges
    • Thread size
    • Robot spraying system up to 800 bar & hi-temp
    • PR vs PAA
    • English version of PC logging software
    • Logging up to 15,000 psi pressure at 300°F
    • Viton or Copper seal above 200°C
  • Related Documents
    • Specification data sheet

Specifications

Pressure Ranges

35XHTC Pressure Ranges

Output Signal & Accuracy

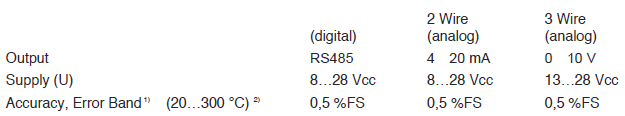

35XHTC Output and Accuracy

Notes:
1) Linearity + Hysteresis + Repeatability + Temp. Coeff. + Zero + Span Tolerance
2) Media Temperature (temperature of electronics max. 120 °C)

Other Specification Details

  • Linearity (best straight line): 0,05 %FS
  • True Output Rate: 100 Hz
  • Resolution: 0,002 %FS
  • Long Term Stability: typ. 0,2 %FS
  • Load Resistance (Ω): <(U-7V) / 0,02A (2-wire) > 5’000 (3-wire)
  • Electrical Connection: Binder-Plug 723 (5 pole), DIN 43650 Plug (4 pole) or MIL C-26482-Plug (6 pole)
  • Insulation: > 10 MΩ / 50 V
  • Storage- / Operating Temperature Range Media: 0…300 °C Electronics: 0…120 °C
  • Pressure Endurance: 10 Million Pressure Cycles 0…100 %FS at 25 °C
  • Vibration Endurance, IEC 68-2-6: 20 g (5…2000 Hz, max. amplitude ± 3 mm)
  • Shock Endurance: 20 g (11 ms)
  • Protection: IP65-IP 68
  • CE-Conformity: EN 61000-6-1 to -6-4
  • Material in Contact with Media: Stainless Steel 316L (DIN 1.4435) / Copper seal
  • Weight: ≈ 300 g
  • Dead Volume Change: < 0,1 mm3
  • Mounting: Horizontal position (carrying-off of heat), Cooling spiral exposed to room temperature

Dimensional Drawing

35XHTC Dimensions

Wiring Configuration

35XHTC Pin Wiring

Product Help

Standard pressure ranges

If 4ma -20ma output is used, what is the default standard of measurement, psi or bar?

You can scale the output to any range, and in any units, which is practical without compromising accuracy using the software. The standard ranges are defined in bar units, and are detailed in the table below.

35XHTC Standard Pressure Ranges

Thread size

What type of thread size does the 35x htc have?

It is a G1/2 male with a flush diaphragm on the tip of the thread. A G 1/2 thread is also called 1/2 BSP parallel thread which is exactly the same thread.

Robot spraying system up to 800 bar & hi-temp

I’m looking for a pressure to measure high pressure up to 800 bar on a robot spraying system.  The material to be measured is viscous and will be at a high temperature.

We would suggest a 35X HTC with a 1000 bar pressure range and built-in high temperature cooling assembly:

  • SKU ID: s1-35xhtc-0001
  • 35X Type: HTC – 300degC max. media temperature
  • Pressure Range: 1000 bar sealed gauge
  • Analogue Output Signal: 4-20mA (2 wire)
  • Digital Interface: RS485 ready only
  • Electrical Connection: 5 pin Binder connector
  • Process Connection: G1/2 male flush (1/2 inch BSP)
  • Media Exposed Materials: Stainless steel 316L and Copper seal
  • Oil Filling: Silicone oil (standard)
  • Compensated Temperature Range: 20 to 300 degC

PR vs PAA

What is the difference between PR 35 X HTC and a PAA 35 X HTC?

PR means vented gauge reference, pressure readings relative to atmospheric pressure, so reads 0 when vent open to air.

PAA means absolute pressure reference, so reads atmospheric pressure ~ 1 bar when open to air.

English version of PC logging software

Do the PROG30 and READ30 programs have English versions?

Yes PROG30/READ30 did have english versions, but both have now been superseded by the Control Center Series 30 (CCS30) software which also has an english version.

Logging up to 15,000 psi pressure at 300°F

We are looking to record test pressures up to 15,000 working pressure and temperatures up to 300 deg F, and need to be able to log via USB and graph results.

The 35X HTC is a high temperature digital pressure sensor with the capability to connect to a PC and log results.

  • SKU ID: s1-35xhtc-0002
  • 35X Type: HTC – 300degC max. media temperature
  • Pressure Range: 1000 bar sealed gauge
  • Analogue Output Signal: 4-20mA (2 wire)
  • Digital Interface: USB data to RS485 cable & PC logging software
  • Electrical Connection: 5 pin Binder connector
  • Process Connection: G1/2 male flush (1/2 inch BSP)
  • Media Exposed Materials: Stainless steel 316L and Copper seal
  • Oil Filling: Silicone oil (standard)
  • Compensated Temperature Range: 20 to 300 degC

Viton or Copper seal above 200°C

The 35X HTC data sheet says stainless steel & viton for material in contact with media, but in the colour photo it looks like a copper seal. Please could confirm wetted parts for 1000 bar, 300 degC operation since Viton is not normally suitable much above 200 degC.

The Viton is not suitable much above 200°C, 220°C is the maximum. A 35 X HTC up to 300°C will be constructed with a Copper seal. So, wetted parts will be SS316L and with a Copper O-ring.

Related Documents

Specification data sheet

  • 35X HTC product data sheet

Request Product Price

Please select the options you require for the 35X HTC High Temperature Digital Pressure Sensor (< 300 degC) in your application and request a quote.

    Some applications will require a special oil filling behind the diaphragm exposed to the media
  • Please enter info about your application and include any other requirements.
