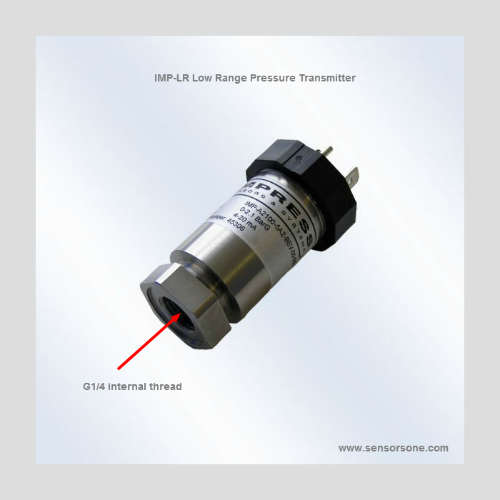

Low range pressure transmitter with a G1/4 female thread for measuring over 0 to 100 millibar relative to atmospheric pressure.
IMPLR Low Range Pressure Transmitter
- Part No: IMP-LR-G0100-5B4-BEV-00-000
- Pressure Range: 0 to 100 mbar gauge (0100)
- Output: 4 – 20mA, 2-wire (5)
- Non-Linearity and Hysteresis: 0.1% FS (B)
- Thermal Zero Shift: 0.04% FS perĀ°C (standard) (4)
- Electrical Connection: Large DIN plug (B)
- Process Connection: G1/4″ female (303 st/st)
- Internal Seal Material: Viton (standard)(V)
- Cable Length if required (metres):
- Special Requirements: Standard (000)
