Differential pressure sensor and local indicator for measuring dp of fluids over the range of 0 to 100 mbar diff. This sensor can tolerate full line pressure on one pressure port connection without damaging the wet/wet dp sensor or affecting its performance. The attachable digital indicator is powered by the 4-20mA current loop and provides a continuous LED display of the current pressure reading in the chosen pressure unit configuration.

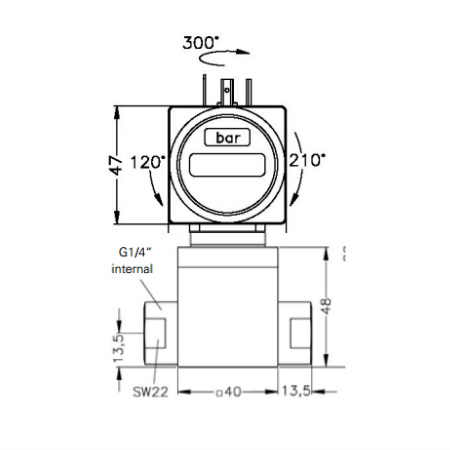

DMD331 Compact Differential Liquid Pressure Sensor
- Differential Pressure Range: 0.10 bar with 0.5 bar line pressure
- Output Signal: 4-20mA, 2 wire
- Electrical Connection: DIN plug and socket (standard)
- Pressure Connection: G1/2 male EN837
PA430 Add-On LED Display
- Analogue Output: 4-20mA (2 wire)
- Switch Contacts: Not required
- Electrical Connection (Output from Display): DIN43650A plug IP65
- Electrical Connection (Input from Sensor): DIN43650A plug IP65
- Engineering Unit Label: mbar
