0.5-4.5V to 4.5-0.5V Signal Inversion

Invert a 0.5 to 4.5 volts range measurement input signal into a 4.5 to 0.5 volts output signal.

0.5-4.5V to 4.5-0.5V Signal Inversion

Contents

  • Products
    • ISOCON 0.5-4.5V to 4.5-0.5V Inverted Signal Inverter
      • ISOCON-6 24V ac/dc Powered 0.5-4.5V to 4.5-0.5V Signal Inverter
      • ISOCON-3 Mains Powered 0.5-4.5V to 4.5-0.5V Signal Inverter
  • Conversion Tool and Table

Products

ISOCON 0.5-4.5V to 4.5-0.5V Inverted Signal Inverter

ISOCON 0.5-4.5V to 4.5-0.5V Inverted Signal InverterThe ISOCON isolating signal inverter is used to invert a 0.5-4.5V input measurement signal to a 4.5-0.5V output signal. The ISOCON can be easily mounted to a wall using a TS35 DIN rail.

ISOCON-6 24V ac/dc Powered 0.5-4.5V to 4.5-0.5V Signal Inverter

  • SKU ID: s1-isocon-0052
  • Part No: II-ISOCON-6-Z11000-J-000
  • Input Type: 0.5-4.5V
  • Output Type: 4.5-0.5V
  • Supply: 12-36 Vdc or 12-32Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

ISOCON-3 Mains Powered 0.5-4.5V to 4.5-0.5V Signal Inverter

  • SKU ID: s1-isocon-0053
  • Part No: II-ISOCON-3-Z11000-J-000
  • Input Type: 0.5-4.5V
  • Output Type: 4.5-0.5V
  • Supply: 85-260Vac
  • Isolation: Full 3-Port
  • Installation: DIN Rail TS35
  • Electrical Connections: Screw clamp with pressure plate

Conversion Tool and Table

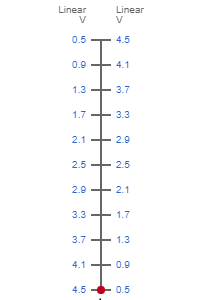

Calculate or look up a 0.5 to 4.5 V input scale value, to find the inverted value over the 4.5 to 0.5 V output scale.

Enter input value in V for a linear range from 0.5 to 4.5 V to calculate output value in V for a linear range from 4.5 to 0.5 V.

Input V
Output V
Sorry, a graphic could not be displayed here, because your browser does not support HTML5 Canvas.

Request product info for a 0.5...4.5 V linear input range to 4.5...0.5 V linear output scale measurement device.

Pick a value from the 0.5 to 4.5 V linear input range column of the conversion table below, and find the corresponding value in the 4.5 to 0.5 V linear output range column.

0.5...4.5 V 4.5...0.5 V 🔗
