This compact ceramic sensing diaphragm pressure transducer provides a millivolt strain gauge bridge output for ranges from 0…0.5 bar (7.25 psi) up to 600 bar ( 8700 psi).
Product Parameters
- Ranges: 0.5 up to 600 bar gauge or absolute
- Output Signals: raw mV/V, 2mV/V, 3mV/V, 10mV/V, 20mV/V
- Accuracy: 0.35%, 0.25%, 0.1% FS
- Electrical Connections: M12 x 1, IP65 or IP67 integral cable, mini DIN plug, mil spec connector, packard metri-pak 150 series connector
- Process Connections: G1/4 male DIN 3852, G1/4 female DIN 3852, 1/4″ NPT male, 1/2″ NPT male, 7/16-20 UNF-2A male (SAE#4 J514)
- Media Compatibility: Process Connector – SS303/SS316/PVDF, Diaphragm – Ceramic, Internal Seals – Viton/EPDM/NBR/FFKM
Product Description

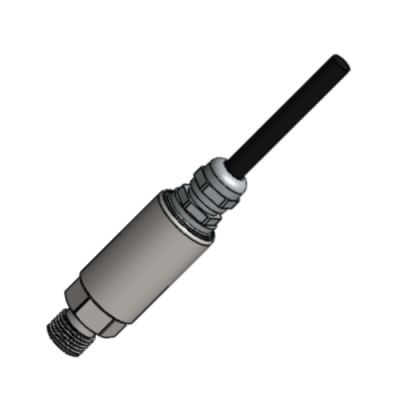

The Titan TPT millivolt output pressure transducer has been developed using a Ceramic (96% Aluminium Oxide Al2O3) piezo-resistive sensing element housed in a robust stainless steel housing. It has the option of an integrated Cable outlet or an M12 x 1, 4-Pin connector both offering up to IP67 ingress protection and also standard connectors such as mini DIN & large DIN 43650 right angled connectors. We also have the option of an integrated MIL-C spec or customer specific connectors.
The internal PCB uses passive components to ensure the low power consumption is maintained, ideal for battery powered applications. Being passive also makes it suitable for applications that require a fast dynamic measurement of pressure with natural frequency response up to 75kHz. Outputs include raw mV/V, rationalised 2mV/V, 3mV/V or 10mV/V and 20mV/V which can be powered from 2 – 30V dc supply.
Product Features
- Ceramic sensor, high corrosion resistance
- Passive millivolt output
- High resistance, low power consumption
- Naturally high frequency response from 1kHz up to 75kHz
- Choice of mechanical connections
- Cost effective for OEM solutions
Applications
- OEM installations
- Laboratory & Research testing
- Hydraulic & Pneumatic testing
- Medical testing / prototyping
- Pressure surge detection
- Data loggers
- Aerospace test and research
- Automotive component testing
- Academic research

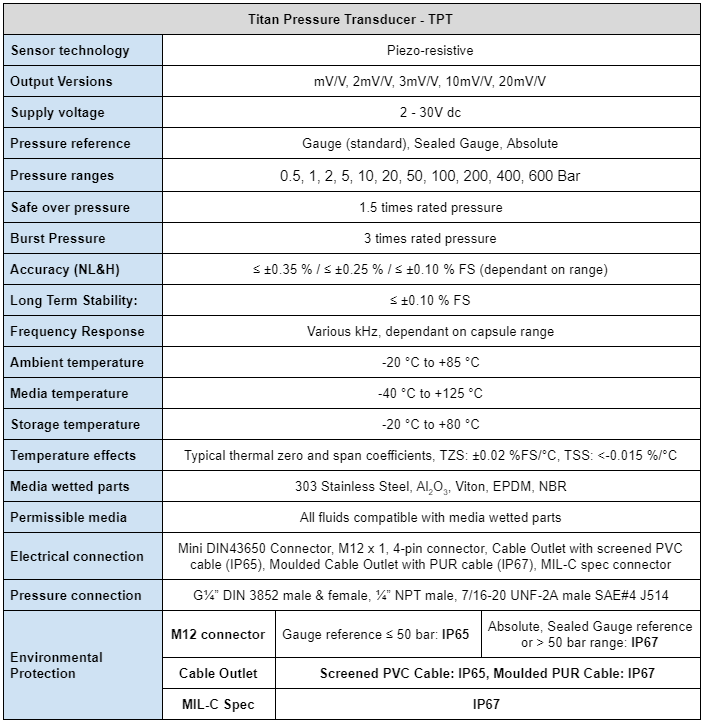

Product Specification

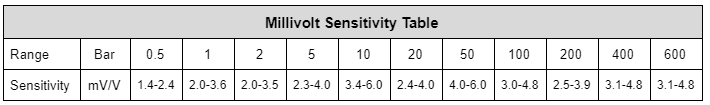

Millivolt Sensitivity Table

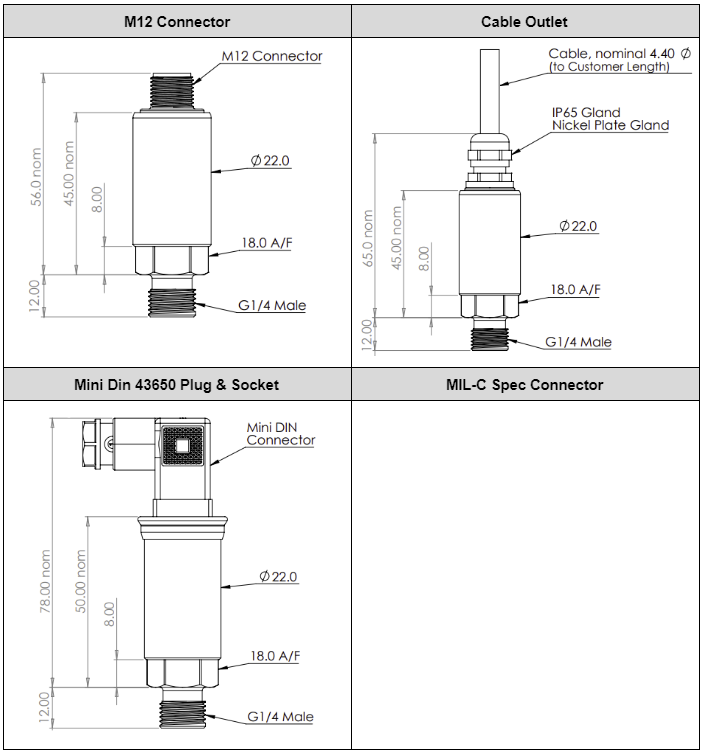

Dimensional Drawings
Wiring Configuration

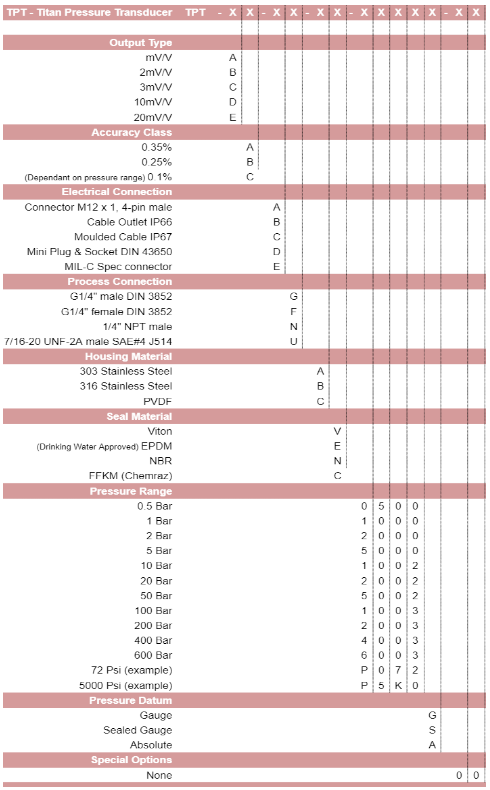

Part Numbering System
Product Help
Operational lifetime
What is the operation life of this sensor?
This depends on the type of usage. This is because the amount of pressure cycling, temperature cycling, vibration and shock the pressure sensor will be subjected to over its service life is not easily predictable. All of these factors will affect the pressure sensor’s performance to varying degrees depending on amplitude and frequency.
Custom pressure range exceeding maximum 600 bar range
As far as I tell from the data sheet of TPT Titan Pressure Transducer, the maximum range is 600 bar. Is it possible to customize and supply a 700 bar range?
It is possible to do 700 bar as a custom range, but the overpressure rating will be limited to 850 bar.
Shock and vibration rating
What is the shock and vibration rating for this transducer to without compromising mechanical stability?
The TPT is rated to 10 g RMS over 25…2000 Hz for vibration, and 500 g / 1 msec for shock.
Related Documents
Specification data sheet
