This submersible pressure sensor is ideal for measuring pond depth, especially in wireless systems with long cable runs. Its low power consumption and amplified output options ensure reliable data transmission over distances. This sensor offers accurate and stable performance, making it suitable for diverse applications like monitoring water levels in tanks, wells, and process tanks. Its adaptability and robust design ensure precise liquid level measurements in demanding environments.
The IMSL submersible pressure sensor is an excellent choice for measuring the depth of water in ponds, particularly when integrated with a wireless system. This sensor is specifically designed to withstand submersion in liquids like pond water, ensuring accurate and reliable measurements even in challenging environments. When considering a wireless system with a cable length of 100 feet, selecting the appropriate output signal is crucial. While a mV/V output offers the lowest power consumption, a low-powered amplified output, such as a 0-2.5Vdc signal, provides a more robust signal transmission over longer distances. This amplified signal minimizes the risk of interference and noise, which can be more prevalent in longer cable runs, ensuring data integrity.
In a wireless pond depth monitoring system, the IMSL sensor, with its low power consumption and compatibility with long cable runs, can be paired with a remote data logger. This logger wirelessly transmits the depth data to a central monitoring station, allowing for real-time monitoring of pond water levels without the need for frequent manual checks. This setup is particularly beneficial in applications where access to the pond is difficult or where continuous monitoring is critical, such as in wildlife conservation areas or for irrigation management.
The IMSL submersible pressure sensor’s versatility makes it suitable for various pond types and applications:
- Ornamental Ponds: In landscaped gardens or parks, maintaining the desired water level is crucial for aesthetics and fish health. The IMSL sensor can be integrated into an automated system to monitor and control water levels, ensuring the pond remains visually appealing and provides a healthy habitat.
- Koi Ponds: These ponds require specific water conditions for the well-being of koi fish. The IMSL sensor can accurately monitor depth, which is essential for maintaining proper water volume and circulation, preventing oxygen depletion and the buildup of harmful toxins.
- Retention Ponds: Designed to manage stormwater runoff, these ponds often experience fluctuating water levels. The IMSL sensor can provide real-time depth data, enabling effective monitoring and control of water levels to prevent flooding or excessive draining.
- Aquaculture Ponds: In fish farms, maintaining optimal water depth is crucial for fish growth and health. The IMSL sensor can be integrated into a monitoring system to ensure consistent water levels, promoting fish production and preventing stress on the aquatic life.
- Golf Course Water Features: Ponds on golf courses enhance the landscape but require careful water management. The IMSL sensor can help monitor and control water levels, ensuring the ponds remain aesthetically pleasing and functional while conserving water resources.
- Natural Swimming Ponds: These eco-friendly ponds rely on natural filtration systems. The IMSL sensor can monitor water depth, which is crucial for maintaining the balance of the ecosystem and ensuring the health of plants and aquatic life.
- Firefighting Ponds: These ponds serve as a water source for firefighting operations. The IMSL sensor can provide continuous monitoring of water levels, ensuring sufficient water availability in emergencies.

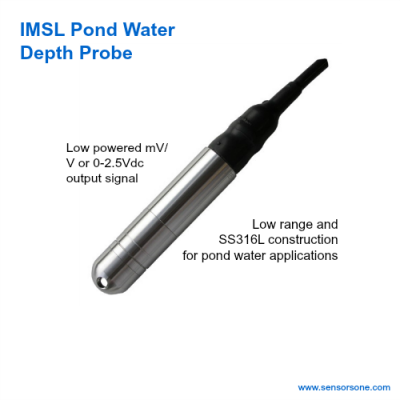

IMSL Submersible Pond Water Pressure Sensor
- Pressure Range: 0-20
- Units: ftH2O
- Range Type: Gauge / Vented (atm to +P)
- Output Signal: 0-2.5Vdc (3wire)
- Non-Linearity and Hysteresis: 0.1% FS
- Thermal Zero Shift: 0.02% FS per °C
- Cable Type: PUR
- Cable Length: 100
- Cable Length Units: Feet (ft)
- Housing & Diaphragm Material: Stainless steel 316L
- Media Exposed Seals: Viton
- Process Connection: G1/4 male DIN3852 with removable nose cone
