Screw-in G1/2 threaded flush diaphragm pressure transmitter with a 0 to 60 psi gauge range for measuring thick fluids in potentially explosive environments such as crude oil refineries.

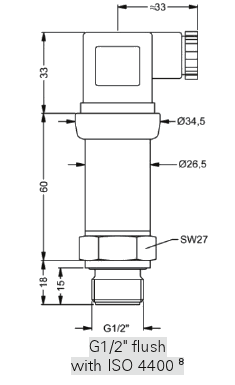

DMP331P Flush Pressure Transmitter
- Pressure Range: 60 psi g
- Output Signal: 4-20mA (2 wire)
- Accuracy: 0.35% FS >0.4bar, 0.5% <=0.4bar (standard)
- Electrical Connection: DIN43650A plug IP65
- Oil Filling: Silicon (standard)
- Pressure Connection: G1/2 Flush DIN3852
- ATEX IS Approval (4-20mA only): Yes
- Media Compatibility: Stainless Steel 316L (standard)
